HB Casting Components
DownLoad Cataloge
Clutch Housing
Cast Iron Fg-260
Ø - 475 L-585mm 67.000kg

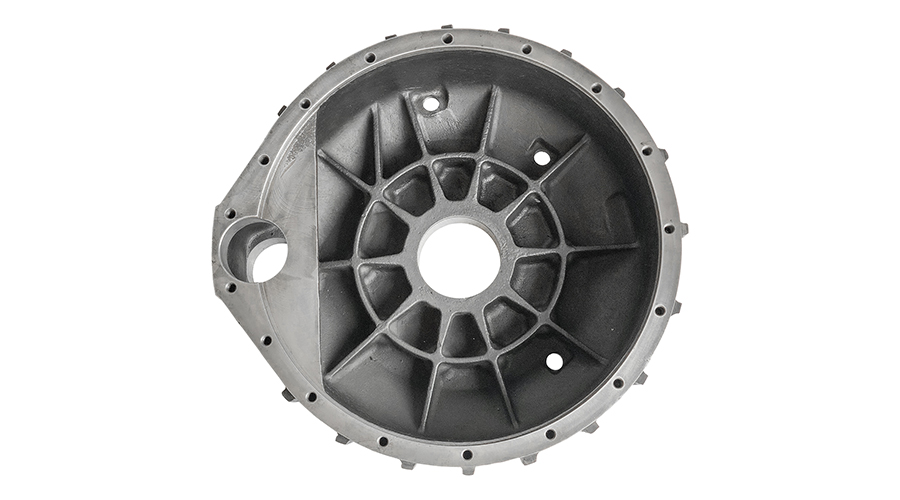

Reduction Housing
Grade- Cast Iron FG-260
Ø 635 mm, H- 180 mm 65 kg
Gear Box Housing
Cast Iron FG 200
L-610mm W-326mm H-363mm 60.000kg
Hydraulic Lift Housing
Cast Iron FG 260
L-165 W-430mm H-180mm 47.000kg

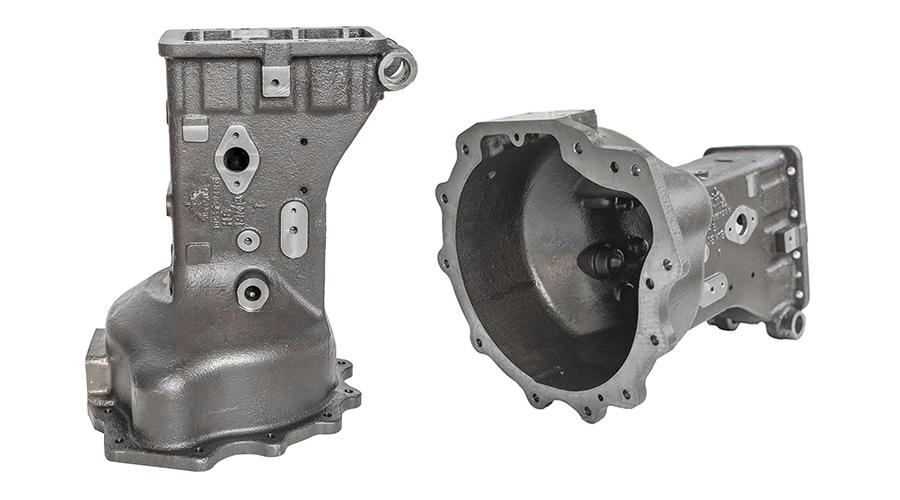

Clutch Housing
Grade- Ductile Iron FG-260
Ø 635mm, W- 150mm, H-435mm 32.0kg

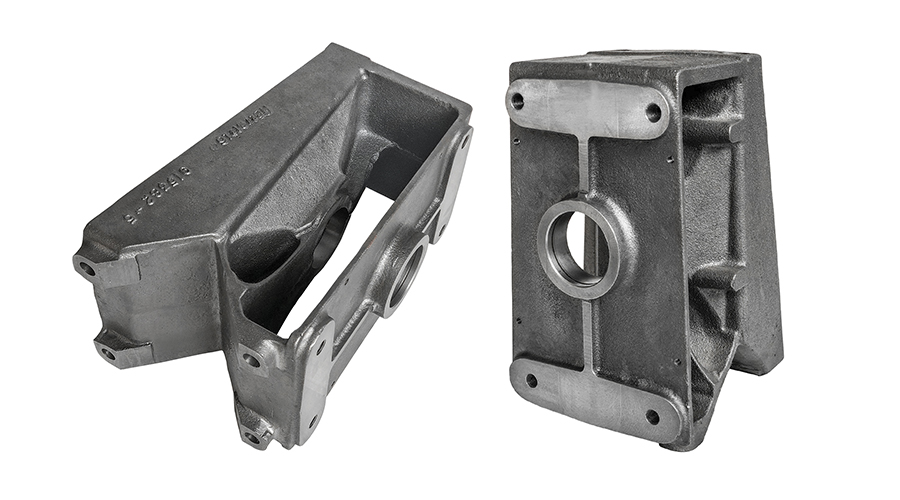

Item- Bearing Support
Grade- Cast Iron FG- 260
L- 325mm, W- 125mm, H- 225mm 29.5kg

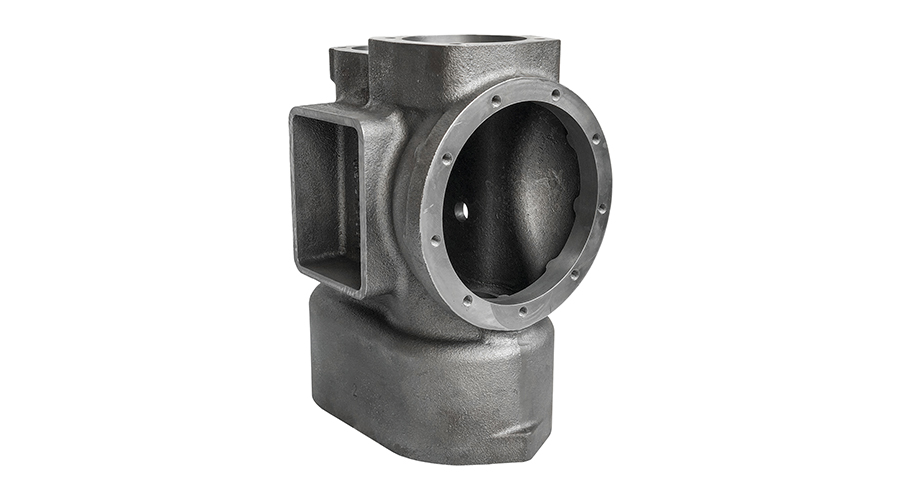

Rotavator Housing
Grade- Cast iron Fg-260
L- 650mm,W- 425mm, H- 250mm 26.5kg

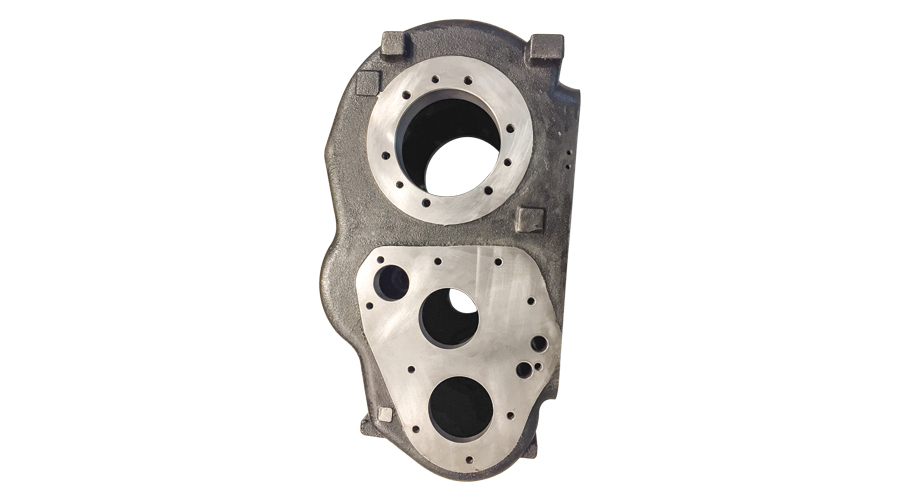

Gear Box Housing
Grade- Cast Iron FG-260
L- 550mm ,W- 325mm, H- 180mm 25.5kg
Reduction Cover
Cast Iron FG 200
Ø - 530mm H-107mm 24.000kg
Clutch Wheel
Cast Iron FG-260
Ø - 346 H-54mm 23.240kg.

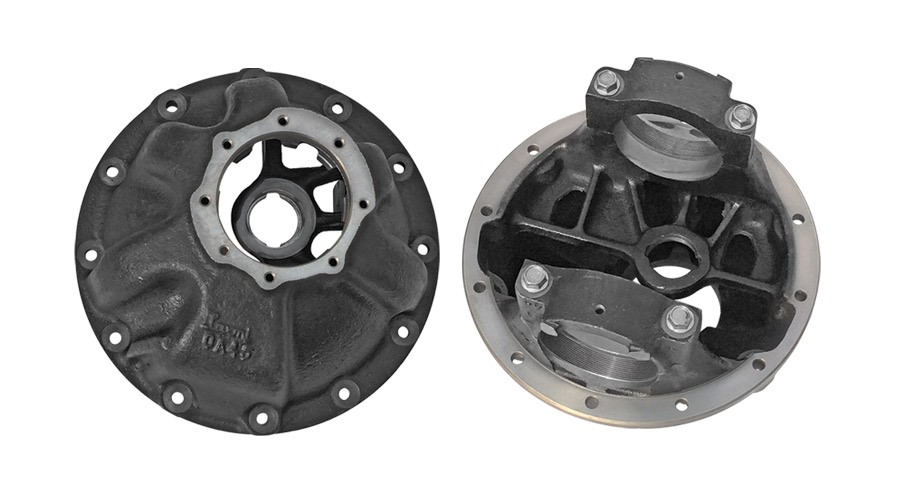

Differential HSG 13"
Cast Iron FG-260
Ø - 276mm H-251mm 23.220kg

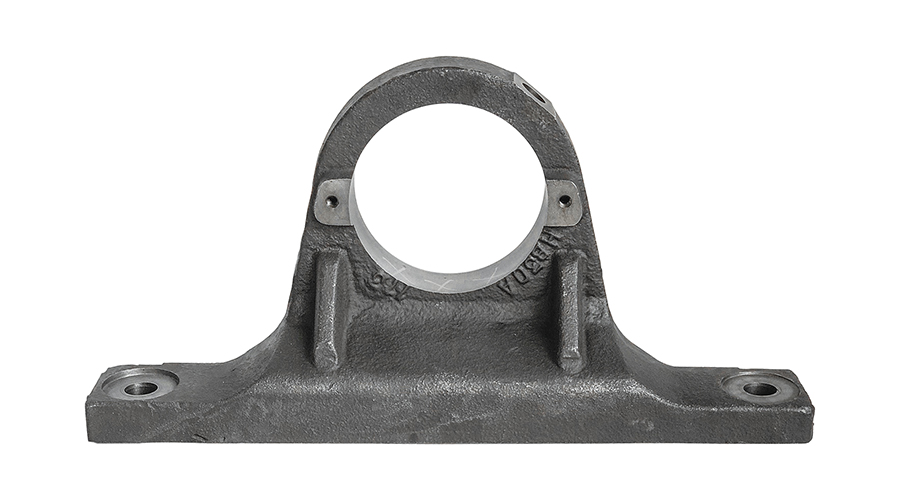

Rear Trunnion
Grade- Ductile Iron 500/7
L- 250mm, W- 75 mm, H- 125 mm 19.5 kg

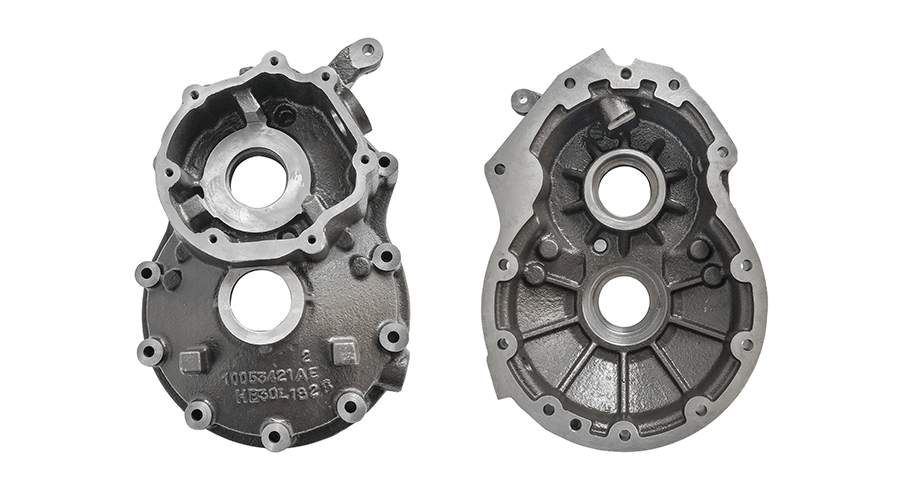

Brake Housing
Grade- Cast Iron FG- 260
L- 250mm, W- 145mm, H- 125mm 19.0kg

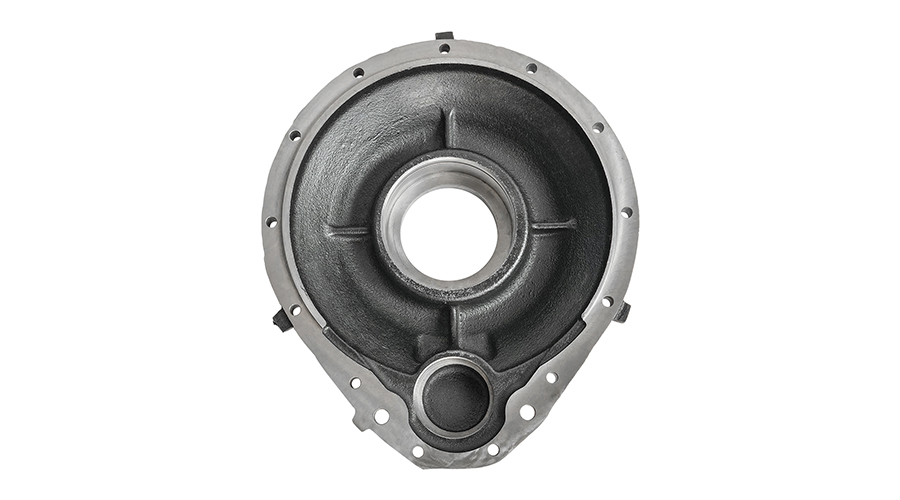

FD Cover
Grade- cast iron FG-260
Ø 425mm , H- 55mm 19.0kg

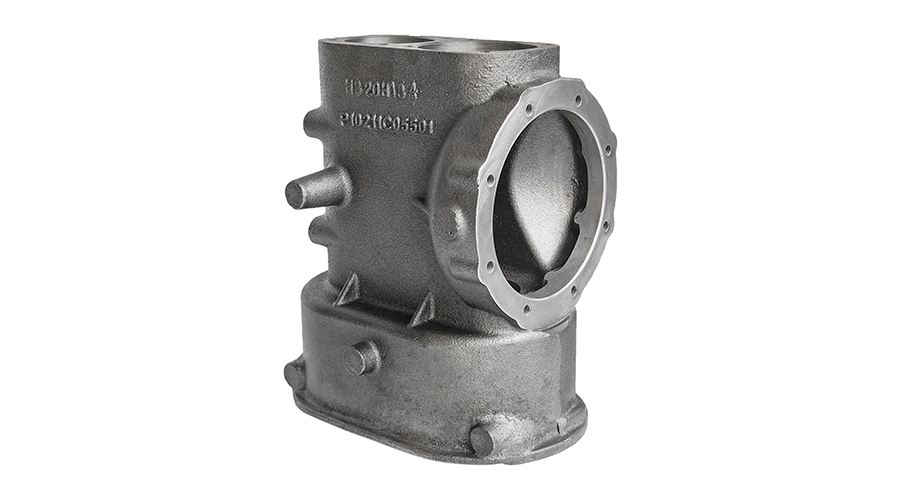

Gearbox Light Series
Garde- Cast iron FG-260
L- 350mm, W- 225mm, H- 135mm 18.5kg

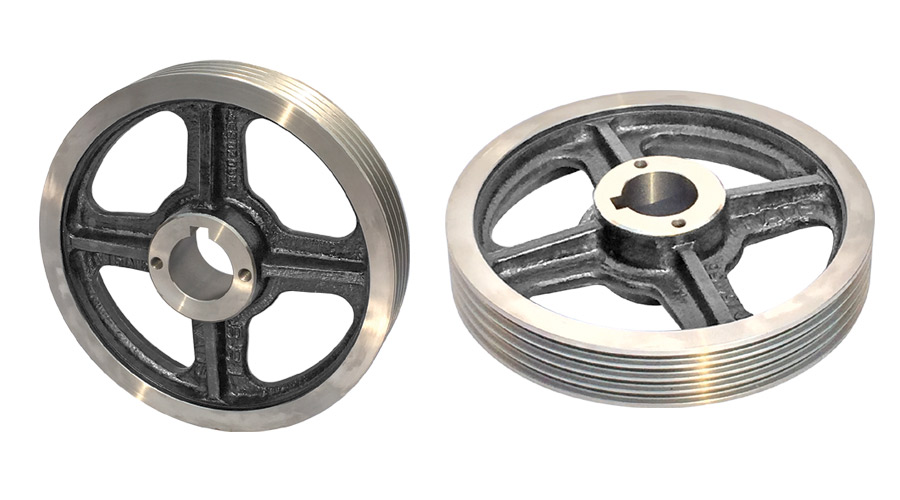

V Belt Pully
Cast Iron FG 200
Ø - 293mm, H-105mm 18.000kg.

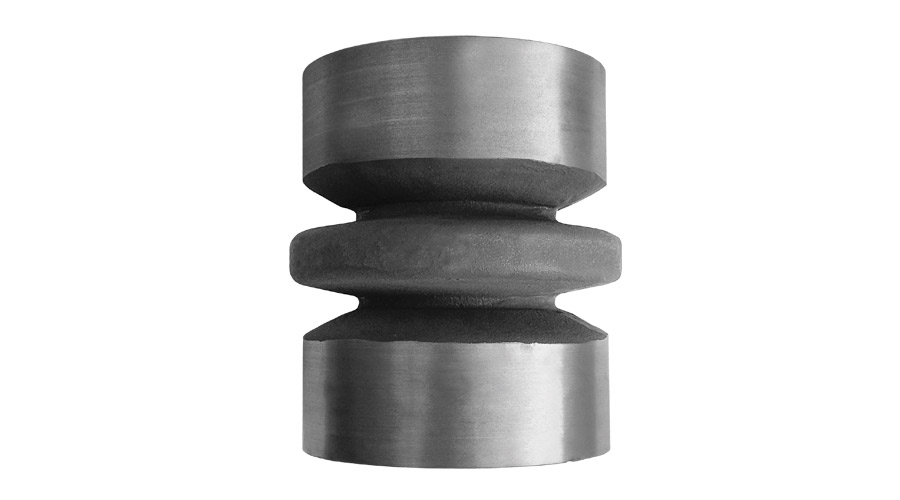

Track Roller with Guide
Ductile Iron 600/3
Ø - 208mm, H-246mm 17.660kg.

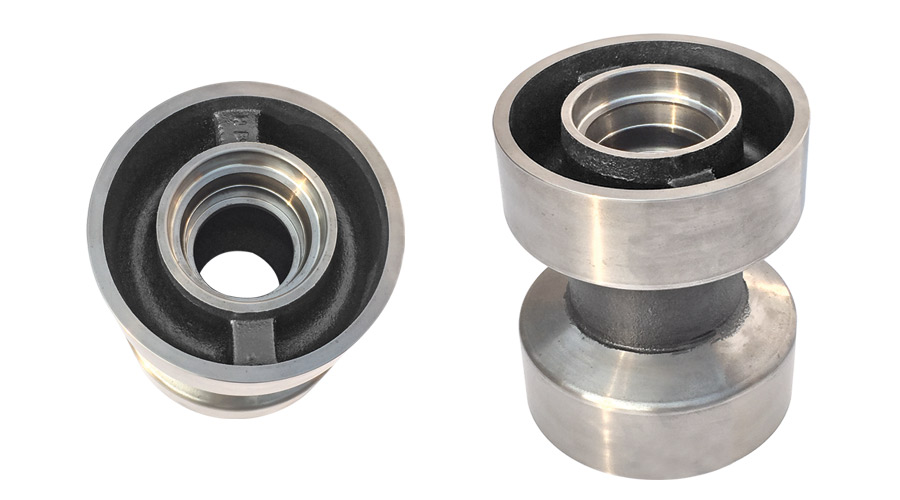

Track Roller without Guide
Ductile Iron 600/3
Ø - 208mm, H-246mm 17.660kg.
Guide Roller - Induction Hardened
Ductile Iron 600/3
Ø - 300mm, H-152mm 15.500kg

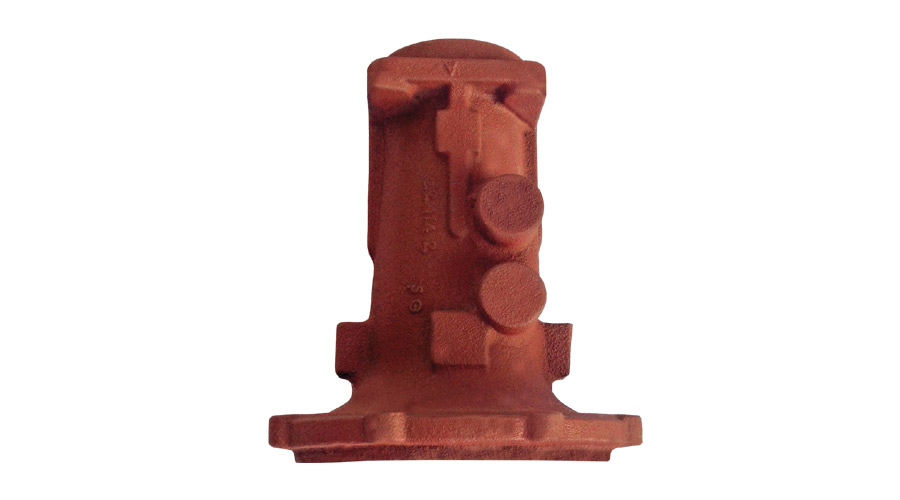

Trumpet Housing
Ductile Iron 400/12
Ø - 220 L-330mm 15.000kg.
Front Trunnion
Grade- Ductile Iron 500/7
L- 325 mm, W- 85 mm, H- 125mm 14.5 kg
Pulley - 4 Groove
Ductile Iron 700/2
Ø - 332mn H-106mm 13.100kg.

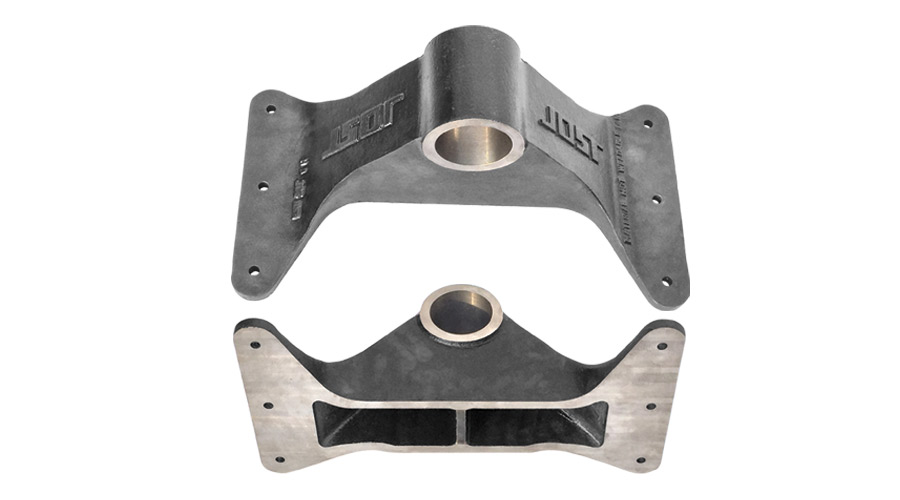

Pedestal
Ductile Iron 400/18
L-450mm W-235mm H-176mm 12.940kg

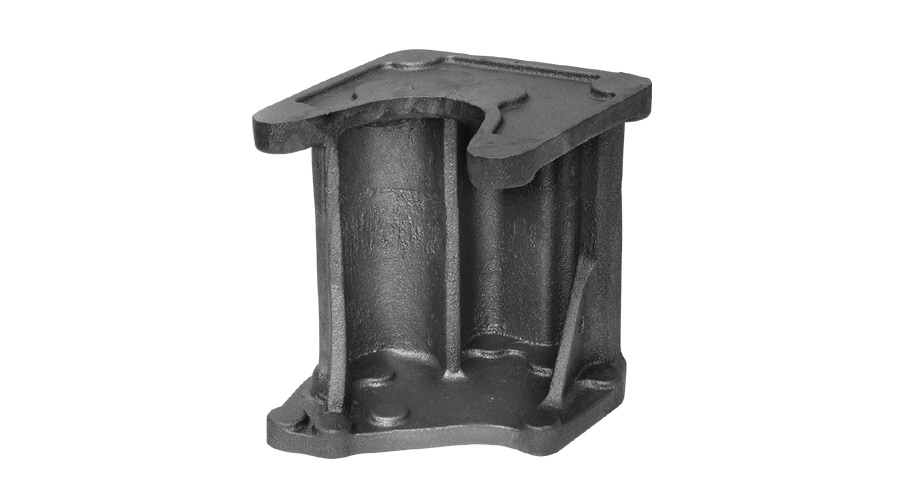

Steering Mounting Bracker
Ductile Iron 400/12
L-240mm W-220mm H-238mm 12.940kg.
Ram cylinder Ø 110 MM
Grade- Ductile Iron 600/3
Ø 110 mm, H- 55 mm 12.5kg
Housing ME Flange
Grade- Ductile Iron 450/10
Ø 125mm , H- 25mm 10.5kg
Rear Wheel Hub
Ductile Iron 400/12
Ø - 245mm H-165mm 10.200kg.

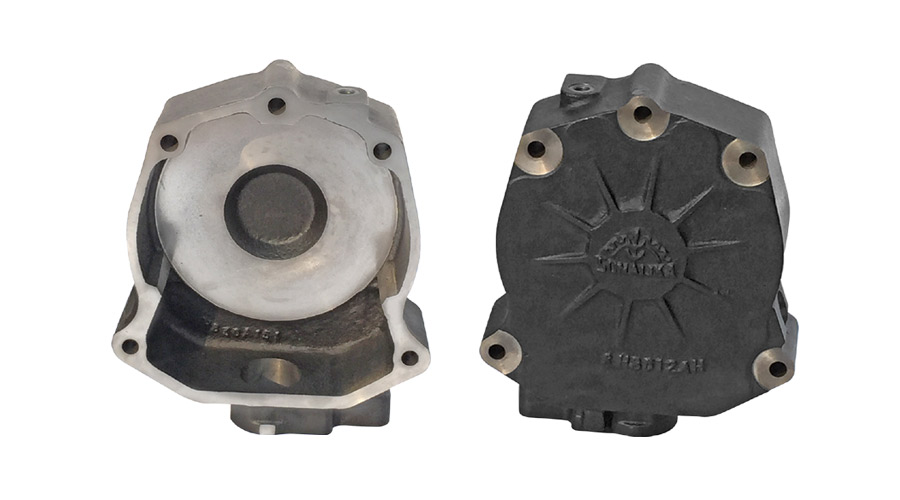

Brake Housing
Cast Iron FG 260
L-297mm W-277mm H-82mm 10.080kg
Planetary Carrier
Grade- Ductile Iron 500/7
Ø 105mm, H- 135mm 9.5kg

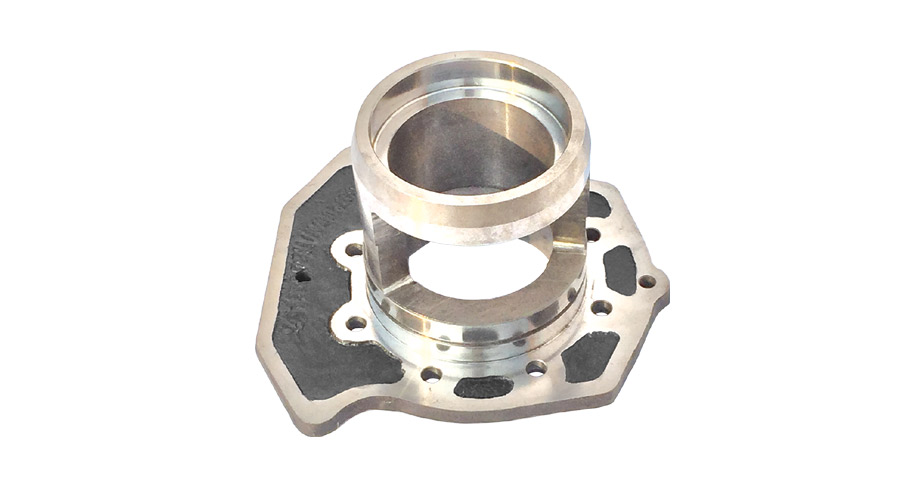

BP Shaft
Ductile Iron 450/10
L-266mm W-250mm H-150mm 8.400kg.
Case Timing Cover
Cast Iron FG-250
L-250mm W-280mm H-45mm 7.240kg.

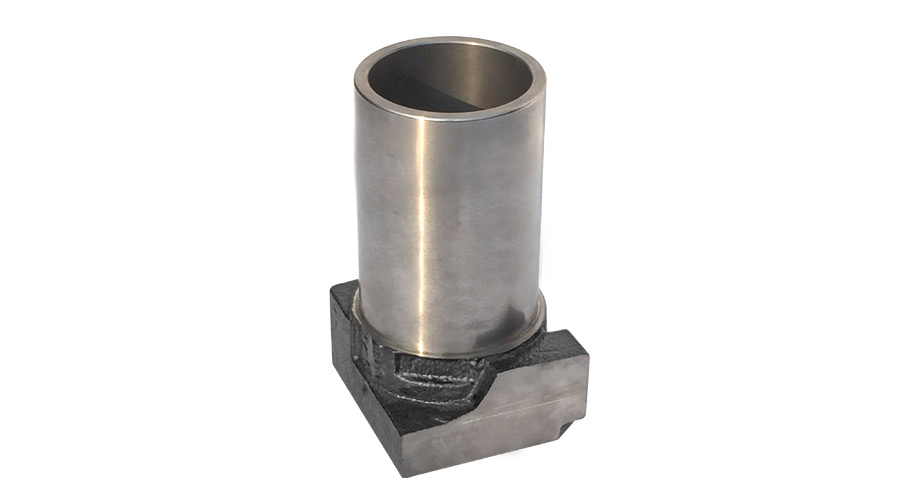

Ram Cylinder
Cast Cast Iron FG-260
L-224mm, W-115mm, H-130.5mm 6.900kg
Differential Cage - Big
Ductile Iron 500/7
Ø - 264mm H-111mm 6.220kg

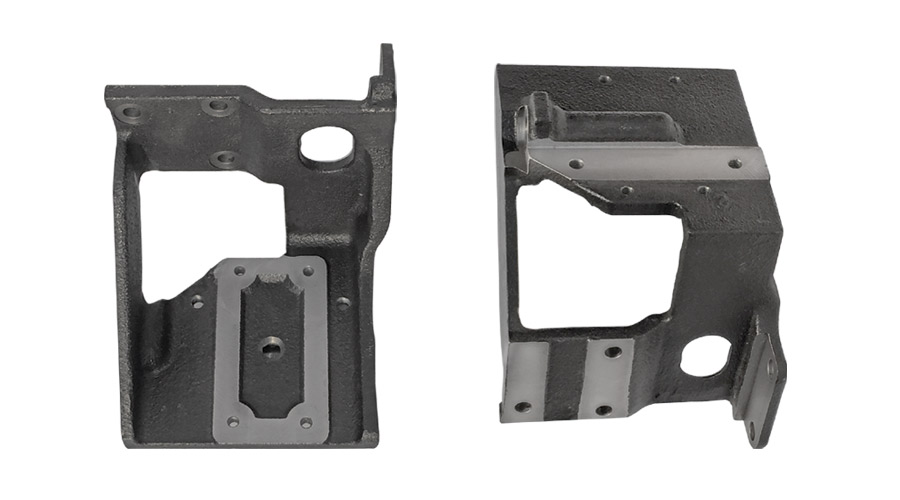

Comp. Mounting Bracket
Ductile Iron 500/7
L-175mm W-215mm H-192mm 4.500kg
Center Brake Drum
Ductile Iron 500/7
Ø - 220mm H-86mm 3.700kg

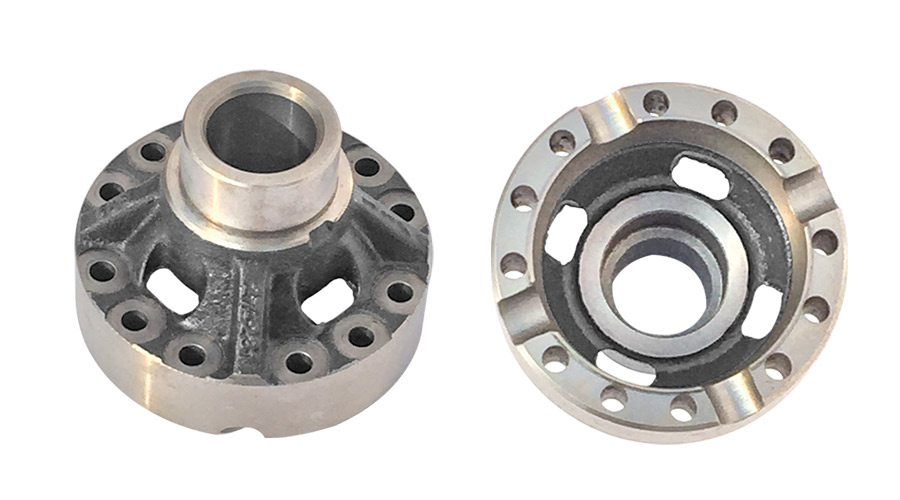

Cage-LH
Ductile Iron 500/7
Ø - 148mm H-113mm 3.000kg.
CA Guide
Cast Iron FG 260
L-212mm W-136mm H-152mm 2.940kg
